EAN Number : 4710480000000

Manufacturer Number : B450 GAMING-ITX/AC

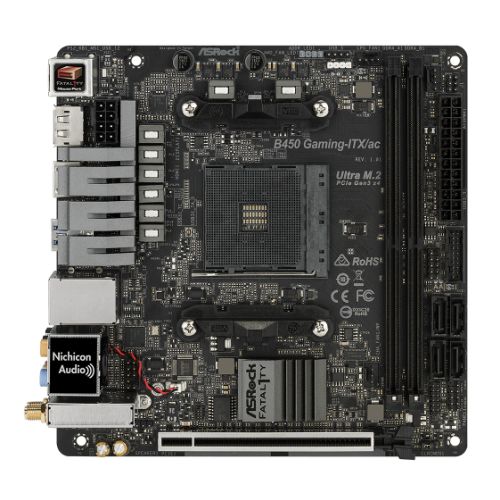

ASROCK – ASMBB450GAMING-ITX

Login to order

Compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Asrock B450 GAMING-ITX/AC, AMD B450, AM4, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, RGB Lighting, M.2

Motherboard Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: AMD AM4
  • Chipset: AMD B450
  • DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHz
  • Maximum Memory: 32GB
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • Graphics Ports:
    • 1 x HDMI
    • 1 x DisplayPort 1.2
  • Multi-GPU Support: – (Not supported)
  • PCI/PCI Express:
    • Summit & Pinnacle Ridge Ryzen CPUs: 1 x PCIe 3.0 x16
    • Raven Ridge Ryzen CPUs: 1 x PCIe 3.0 x16
  • PCI: –
  • Storage:
    • 4 x SATA III
    • 1 x Ultra M.2 (2280) – SATA & PCIe
  • RAID: RAID 0, 1, 10
  • Wireless:
    • Intel 802.11ac WiFi Module
    • Supports IEEE 802.11a/b/g/n/ac
    • Supports Dual-Band (2.4/5 GHz)
    • Wireless connections up to 433Mbps
    • Bluetooth 4.2
  • LAN: Gigabit LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • USB Ports Supported:
    • 2 x USB 3.1 Gen2 (Type A & C at back)
    • 4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
    • 4 x USB 2.0 (2 at back, 2 at mid-board)
  • Back Panel I/O Ports:
    • 2 x Antenna
    • 1 x PS/2 Mouse/Keyboard
    • 1 x HDMI
    • 1 x DisplayPort 1.2
    • 1 x Optical SPDIF Out
    • 2 x USB 2.0
    • 1 x USB 3.1 Gen2 Type-A
    • 1 x USB 3.1 Gen2 Type-C
    • 2 x USB 3.1 Gen1
    • 1 x RJ-45 LAN
    • HD Audio Jacks
  • Internal I/O Connectors:
    • 1 x LPC
    • 1 x Addressable LED
    • 1 x AMD Fan LED
    • 1 x CPU Fan
    • 2 x Chassis/Water Pump Fan
    • 1 x 24 pin ATX
    • 1 x 8 pin 12V
    • 1 x Front Audio
    • 1 x AMD LED Fan USB
    • 1 x USB 2.0
    • 1 x USB 3.1 Gen1
  • Accessories:
    • Quick Installation Guide
    • Support CD
    • I/O Shield
    • 2 x SATA Data Cables
    • 2 x ASRock WiFi 2.4/5 GHz Antennas
    • 1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9540 kg
  • Warranty: 2 Year Replacement Warranty

Motherboard Key Features

Specifications

  • Socket: AMD AM4
  • Memory Support: DDR4 3466+ (OC)
  • PCIe Slots: 1 x PCIe 3.0 x16
  • Graphics Output: DisplayPort 1.2, HDMI 2.0
  • Audio: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
  • Storage:
    • 4 x SATA3
    • 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • USB Ports:
    • 2 x USB 3.1 Gen2 (Rear Type-A + Type-C)
    • 4 x USB 3.1 Gen1 (2 Front, 2 Rear)
  • LAN: Intel® Gigabit LAN
  • Wireless: Intel® 802.11ac WiFi + BT 4.2

Features

  • AMD StoreMI Technology: Combines the speed of an SSD with the capacity of an HDD into a single drive, moving frequently accessed data to the SSD for improved performance. Utilizes up to 2GB of RAM as a cache for faster access.
  • Polychrome RGB: Includes onboard RGB headers and an addressable RGB header for syncing with compatible LED devices. Customizable lighting effects with Polychrome RGB Sync-certified accessories.
  • Creative Sound Blaster Cinema 5: Delivers cinematic audio with 5.1/7.1 surround sound for enhanced gaming and movie experiences. Provides a layer of realism and dynamics with stereo speakers or headphones.
  • Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3): Offers high-speed data transfer up to 32 Gb/s and supports both PCIe Gen3 x4 and SATA3 M.2 modules.
  • Dual USB 3.1 Gen2 (Type-A + Type-C): Provides next-gen USB 3.1 Gen2 ports with up to 10 Gbps data transfer rates, located on the rear I/O.
  • Intel® LAN: Ensures top performance, low CPU utilization, and enhanced stability for network connectivity.
  • 2oz Copper PCB: Features 2 ounces of copper in PCB layers for lower temperatures and higher energy efficiency, enhancing overclocking stability.
  • PCIe Steel Slot: Reinforced with a solid cover to prevent signal interference and support heavy graphics cards securely.
  • F-Stream: An all-in-one tuning program that supports overclocking, hardware tuning, energy usage, H/W monitoring, and fan speed control.
  • Gaming Armor:
    • Power: Hi-Density Power Connector
    • Memory: 15u Gold Contact
    • VGA Card: 15u Gold Contact
    • Internet: Intel® LAN
    • Audio: Creative Sound Blaster Cinema 5
  • Water Pump Header: Supports water pumps with up to 2A power, adjustable voltage for improved cooling performance and reduced noise.
  • Fatal1ty Mouse Port: Allows customization of mouse polling rates from 125 Hz to 1000 Hz for enhanced gaming precision.
  • Gold Audio Jacks: Provides stable sound transmission and a premium look with gold-plated audio jacks.
  • Full Spike Protection: Protects motherboard components from damage due to power surges and voltage spikes.
  • Live Update & APP Shop: Offers convenient system optimization, updates, and access to support software through ASRock’s Live Update & APP Shop.

Super Alloy Features

  • Premium Power Choke: Enhanced saturation current for better Vcore voltage stability.
  • Dual-N MOSFET: More efficient power delivery with larger die area and lower Rds(on).
  • Nichicon 12K Black Caps: Longer lifespan and increased stability with capacitors rated for 12,000 hours.
  • Matte Black PCB: Stylish matte black and copper color scheme.
  • High Density Glass Fabric PCB: Reduces gaps between PCB layers to prevent electrical shorts caused by humidity.

Additional information

Weight 0.9540 kg
